M-300 Remote 1.0.3

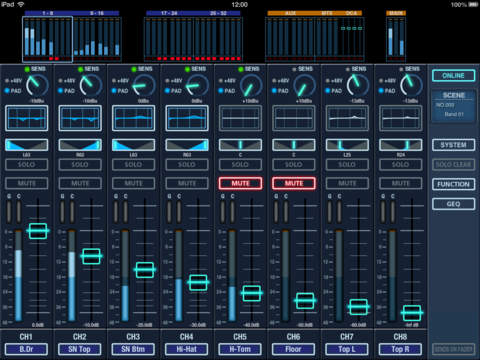

M-300 Remote is an application for remotely controlling the Roland M-300 V-Mixer live mixing console.

●This applications makes it possible to adjust mixing parameters from a variety of listening points on stage or around the room, away from the M-300 positioned at a fixed location.

●Combined with the easy operation afforded by the iPad's large screen and Multi-Touch interface, this application makes it easy to remotely view and adjust settings.
●
It is also equally useful as a sub-display and controller when placed beside the M-300 V-Mixer.

Controllable parameters:

[Channel]
- Preamp Gain
- Pan
- Solo
- Mute
- Fader
- Sends on Fader
- 4-Band Parametric EQ and HPF
- EQ Copy/Paste/Undo

[Bus]
- Pan
- Solo
- Mute
- Fader
- 8-Band Parametric EQ
- EQ Copy/Paste/Undo

[Other]
- 31 Band Graphic EQ
- GEQ Copy/Paste/Undo
- Solo Clear
- Scene Recall/Store/Clear

Viewable-only parameters:

[Channel]
- Phantom Power Status
- Pad Status
- Gain Reduction on Gate
- Gain Reduction on Compressor
- Name and Color
- Meter

[Bus]
- Gain Reduction on Gate
- Gain Reduction on Compressor
- Name and Color
- Meter

[Other]
- Scene Lock/Filter/Fade Status
- Meter Overview

Important notes:
*Use with the most recent firmware version of the M-300.
*A wireless USB adapter (Roland WNA1100-RL) is required.

*A Wi-Fi router (wireless LAN router, etc.) is recommended but if not available, connection can be made directly to the wireless USB adapter in ad-hoc mode.

*Because the wireless USB adapter occupies the M-300's USB port, functions that use a USB flash key (such as recording, playback, and backing up settings) are not possible while the wireless USB adapter is connected.
*A single iPad can be connected at one time. This application cannot be used concurrently with the M-300 RCS PC/Mac remote application software.
